PICO L系通孔和P系絕緣性引線超袖珍型電壓器

發部時光(guang)：2024-11-15 17:13:04   瀏覽器：759

PICO“L國產”摸塊能決定MIL-PRF-27/357構建工作和檢則。

樣式

MIL-PRF-27：所(suo)有摸(mo)塊均(jun)完全符(fu)合MIL-PRF-25，5級，S類開發。

速率反(fan)映：±3db，300 Hz-75 KHz，1.0mW。

最大(da)化失幀：在1 KHz和400 Hz的電機額(e)定輸出功率(lv)輸出功率(lv)周圍環境下為5%。

介電抗(kang)拉強(qiang)度：一切模塊電源(yuan)都已經(jing)200 V RMS下通過測試。

絕緣電阻測試器電阻器：在300 V DC下大于(yu)10000mA。

凈重量：5克。

操作步驟氣溫：-55oC至+130oC

接插件操作：尺寸約.016的(de)方(fang)形(xing)絕(jue)緣(yuan)線。可焊性擁有MIL-STD-202做(zuo)法208。

熱沖(chong)擊力：25個無限循環(huan)，最(zui)簡單的方(fang)法107，MIL-STD-202，操作(zuo)流(liu)程(cheng)的條件55oC至(zhi)+130oC

共同點

極端分(fen)子(zi)耐(nai)溫性撞擊性

超微信長寬比

PICO被批準(zhun)書為QPL從(cong)何而來（Mil-PRF-27）

磁屏幕適于

也(ye)可(ke)以使(shi)用防靜(jing)電屏幕

適用于(yu)規格的設計的改(gai)變

低(di)級和次級電機(ji)定子既(ji)就能(neng)夠做輸入(ru)，也(ye)就能(neng)夠做輸出精度。

比較(jiao)特殊的生產(chan)制造流程(cheng)保持大(da)小穩(wen)定，電纜線中(zhong)含膠封劑。電纜線條件(jian)無彎(wan)月面。

運用PICO的特別的SR結購，每種(zhong)模塊(kuai)圖(tu)片都要能確定300次熱(re)重(zhong)復。

南京(jing)市(shi)立維創展科技(ji)信息是PICO工廠代理商(shang)加(jia)盟，專業專注為(wei)客可以提供高(gao)(gao)高(gao)(gao)品質優效(xiao)率、優效(xiao)率、價格算滿意的電原模快商(shang)品。PICO軟件(jian)正(zheng)品進(jin)口，的質量(liang)(liang)擔保，若是必須(xu) PICO品牌(pai)歡迎會點擊量(liang)(liang)左邊客服專員詢(xun)問！！！

Ultra Miniature Transformers:

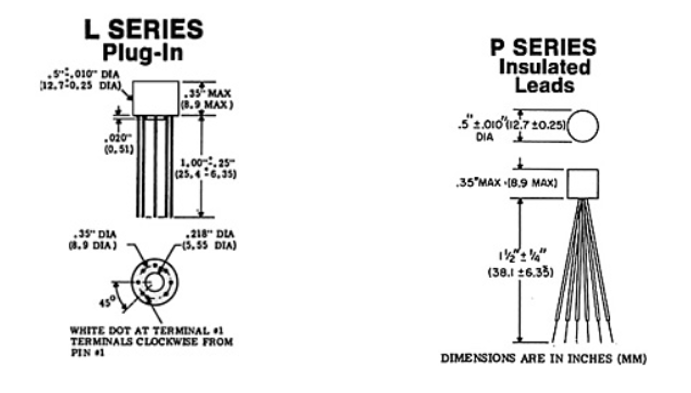

L Series Thru Hole and P Series Insulated Leads

Pico
Part
Number

Prim.
Imped.
Ohms

Sec.
Imped.
Ohms
Split
Windings

Power
Watts

Prim.
Unbal.
DC
Curr.
ma

Prim.
DC
Resist.
Ohms

Sec.
DC
Resist.
Ohms

Turns Ratio
Prim/Sec.

L
Series
Thru Hole

P
Series
Insul.
Leads

SER

PAR

1
KHz
and
higher

400
Hz
and
higher

300
Hz
and
higher

Ser
Conn

Par
Conn

Sec
Ser
Conn

Sec
Par
Conn

L-8203
L-8205
L-8210
L-8215
L-8218

P-9203
P-9205
P-9210
P-9215
P-9218

20ct
20ct
32ct
40ct
48ct

8ct
20ct
32ct
40ct
16ct

2
5
8
10
4

.6
.6
.6
.6
.6

.4
.4
.4
.4
.4

.3
.3
.3
.3
.3

30.0
30.0
23.0
21.0
19.0

2
2
3.3
3.7
3.75

1.2
2.8
4.5
5
3

.3
.7
1.13
1.25
.75

1.58:1
1:1
1:1
1:1
1.73:1

3.16:1
2:1
2:1
2:1
3.46:1

L-8220
L-8225
L-8228
L-8230
L-8235

P-9220
P-9225
P-9228
P-9230
P-9235

50ct
80ct
100ct
100ct
120ct

50ct
32ct
40ct
100ct
12.8ct

12.5
8
10
25
3.2

.6
.6
.6
.6
.6

.4
.4
.4
.4
.4

.3
.3
.3
.3
.3

19.0
15.0
13.0
13.0
12.0

5
7.5
10.8
10.8
9.3

7
4.3
5
12
2.2

1.75
1.13
1.25
3
.55

1:1
1.58:1
1.58:1
1:1
3.06:1

2:1
3.16:1
3.16:1
2:1
6.12:1

Ultra Miniature Transformers: L Series Thru Hole and P Series Insulated Leads
Pico Part Number		Prim. Imped. Ohms	Sec. Imped. Ohms Split Windings		Power Watts			Prim. Unbal. DC Curr. ma	Prim. DC Resist. Ohms	Sec. DC Resist. Ohms		Turns Ratio Prim/Sec.
L Series Thru Hole	P Series Insul. Leads	Prim. Imped. Ohms	SER	PAR	1 KHz and higher	400 Hz and higher	300 Hz and higher	Prim. Unbal. DC Curr. ma	Prim. DC Resist. Ohms	Ser Conn	Par Conn	Sec Ser Conn	Sec Par Conn
L-8240 L-8245 L-8250 L-8255 L-8260	P-9240 P-9245 P-9250 P-9255 P-9260	120ct 120ct 150ct 150ct 150ct	60ct 120ct 12ct 50ct 100ct	15 30 3 12.5 25	.6 .6 .6 .6 .6	.4 .4 .4 .4 .4	.3 .3 .3 .3 .3	12.0 12.0 11.0 11.0 11.0	9 11.6 11.2 13 13	7.2 13 2.2 6.8 11.8	1.8 3.3 .55 1.7 3	1.41:1 1:1 3.54:1 1.73:1 1.22:1	2.83:1 2:1 7.08:1 3.46:1 2.45:1
L-8265 L-8270 L-8275 L-8280 L-8285	P-9265 P-9270 P-9275 P-9280 P-9285	150ct 150ct 200ct 300ct 300ct	150ct 600ct 200ct 12ct 50ct	37.5 150 50 3 12.5	.6 .6 .6 .6 .6	.4 .4 .4 .4 .4	.3 .3 .3 .3 .3	11.0 11.0 10.0 8.0 8.0	12 13 19 24 30	18.3 75 21.3 1.7 6.8	4.6 19 5.4 .43 1.7	1:1 1:2 1:1 5:1 2.45:1	2:1 1:1 2:1 10:1 4.9:1
L-8290 L-8295 L-8300 L-8305 L-8310	P-9290 P-9295 P-9300 P-9305 P-9310	300ct 300ct 300ct 320ct 400ct	150ct 300ct 600ct 12.8ct 40ct	37.5 75 150 3.2 10	.6 .6 .6 .6 .6	.4 .4 .4 .4 .4	.3 .3 .3 .3 .3	8.0 8.0 8.0 7.5 7.0	30 30 30 31 41	18 34 60 1.7 4.5	4.6 8.5 15 .43 1.13	1.41:1 1:1 1:1.41 5:1 3.16:1	2.83:1 2:1 1.41:1 10:1 6.32:1
L-8315 L-8320 L-8325 L-8330 L-8335	P-9315 P-9320 P-9325 P-9330 P-9335	400ct 400ct 400ct 400ct 400ct	120ct 200ct 400ct 1000ct 2000ct	30 50 100 250 500	.6 .6 .6 .6 .6	.4 .4 .4 .4 .4	.3 .3 .3 .3 .3	7.0 7.0 7.0 7.0 7.0	41 41 41 41 41	12 21.3 37.5 96 212	3 5.4 9.4 24 53	1.83:1 1.41:1 1:1 1:1.58 1:2.24	3.65:1 2.83:1 2:1 1.26:1 1:1.12
L-8340 L-8342 L-8344 L-8345 L-8347	P-9340 P-9342 P-9344 P-9345 P-9347	400ct 500ct 500ct 500ct 500ct	4000ct 12.8ct 16ct 50ct 150ct	1000 3.2 4 12.5 37.5	.6 .6 .6 .6 .6	.4 .4 .4 .4 .4	.3 .3 .3 .3 .3	7.0 6.0 6.0 6.0 6.0	41 48 48 39 48	375 1.7 1.9 6.8 18	94 .43 .5 1.7 4.6	1:3.16 6.25:1 5.6:1 3.16:1 1.83:1	1:1.58 12.5:1 11.2:1 6.32:1 3.65:1
L-8350 L-8355 L-8360 L-8365 L-8367	P-9350 P-9355 P-9360 P-9365 P-9367	500ct *500ct 500ct 600ct 600ct	500ct 500ct 600ct 12.8ct 30ct	125 - 150 3.2 7.5	.6 .6 .6 .6 .6	.4 .4 .4 .4 .4	.3 .3 .3 .3 .3	6.0 6.0 6.0 5.5 5.5	48 48 48 53 53	54 68 59 1.7 4.2	13.5 - 15 .43 1.1	1:1 1:1 1:1.1 6.85:1 4.47:1	2:1 - 1.83:1 13.7:1 8.94:1
L-8370 L-8375 L-8380 L-8385 L-8387**	P-9370 P-9375 P-9380 P-9385 P-9387	600ct 600ct 600ct *600ct 600ct	48ct 200ct 600ct 600ct 1200ct	12 50 150 - 300	.6 .6 .6 .6 .6	.4 .4 .4 .4 .4	.3 .3 .3 .3 .3	5.5 5.5 5.5 5.5 5.5	53 53 57 53 53	6.8 21.3 79 75 105	1.7 5.3 20 - 26	3.54:1 1.73:1 1:1 1:1 1:1.41	7.07:1 3.46:1 2:1 - 1.41:1
L-8390 L-8395 L-8400 L-8405 L-8410	P-9390 P-9395 P-9400 P-9405 P-9410	640ct 700ct 800ct 800ct 800ct	12.8ct 100ct 12.8ct 48ct 800ct	3.2 25 3.2 12 200	.6 .6 .6 .6 .6	.4 .4 .4 .4 .4	.3 .3 .3 .3 .3	5.5 5.0 5.0 5.0 5.0	66 69 75 75 75	1.7 12 1.7 6.8 105	.43 3 .43 1.7 26	7.07:1 2.65:1 7.9:1 4.08:1 1:1	14.14:1 5.29:1 15.8:1 8.16:1 2:1
L-8415 L-8420 L-8425 L-8430 L-8435	P-9415 P-9420 P-9425 P-9430 P-9435	900ct 1000ct 1000ct 1000ct 1060ct	600ct 12ct 50ct 1000ct 12.8ct	150 3 12.5 250 3.2	.6 .6 .6 .6 .6	.4 .4 .4 .4 .4	.3 .3 .3 .3 .3	4.5 4.5 4.5 4.5 4.0	79 103 103 103 108	75 1.6 6.4 115 1.7	19 .4 1.6 28 .43	1.22:1 9.13:1 4.47:1 1:1 9.1:1	2.45:1 18.3:1 8.94:1 2:1 18.2:1
L-8440 L-8445 L-8450 L-8455 L-8460	P-9440 P-9445 P-9450 P-9455 P-9460	1200ct 1200ct 1200ct *1200ct 1500ct	12.8ct 500ct 1200ct 1200ct 12ct	3.2 125 300 - 3	.6 .6 .6 .6 .6	.4 .4 .4 .4 .4	.3 .3 .3 .3 .3	4.0 4.0 4.0 4.0 3.5	113 113 113 111 126	1.7 5.4 126 125 1.6	.43 13.5 31.6 - .4	9.68:1 1.55:1 1:1 1:1 11.2:1	19.4:1 3.1:1 2:1 - 22.4:1

Ultra Miniature Transformers: L Series Thru Hole and P Series Insulated Leads
Pico Part Number		Prim. Imped. Ohms	Sec. Imped. Ohms Split Windings		Power Watts			Prim. Unbal. DC Curr. ma	Prim. DC Resist. Ohms	Sec. DC Resist. Ohms		Turns Ratio Prim/Sec.
L Series Thru Hole	P Series Insul. Leads	Prim. Imped. Ohms	SER	PAR	1 KHz and higher	400 Hz and higher	300 Hz and higher	Prim. Unbal. DC Curr. ma	Prim. DC Resist. Ohms	Ser Conn	Par Conn	Sec Ser Conn	Sec Par Conn
L-8465 L-8470 L-8475 L-8480 L-8483	P-9465 P-9470 P-9475 P-9480 P-9483	1500ct 1500ct 1500ct 1600ct 2000ct	500ct 600ct 1500ct 12.8ct 8ct	125 - - 3.2 2	.6 .6 .6 .6 .6	.4 .4 .4 .4 .4	.3 .3 .3 .3 .3	3.5 3.5 3.5 3.5 3.0	126 126 126 130 210	68 94 176 1.7 1.2	17 - - .43 .3	1.73:1 1.58:1 1:1 11.2:1 15.8:1	3.46:1 - - 22.4:1 31.6:1
L-8485 L-8490 L-8495 L-8497 L-8500	P-9485 P-9490 P-9495 P-9497 P-9500	2000ct *2000ct 2000ct 2500ct 3000ct	2000ct 2000ct 8000ct 2500ct 3000ct	500 - 2000 625 750	.6 .6 .6 .6 .6	.4 .4 .4 .4 .4	.3 .3 .3 .3 .3	3.0 3.0 3.0 2.5 2.5	198 198 198 220 243	218 218 850 305 335	55 - 213 76 84	1:1 1:1 1:2 1:1 1:1	2:1 - 1:1 2:1 2:1
L-8505 L-8510 L-8512 L-8514 L-8515	P-9505 P-9510 P-9512 P-9514 P-9515	*3000ct 3600ct 4000ct 4000ct 4000ct	3000ct 3600ct 16ct 600ct 1000ct	- 900 4 150 250	.6 .6 .6 .6 .6	.4 .4 .4 .4 .4	.3 .3 .3 .3 .3	2.5 2.5 2.0 2.0 2.0	304 330 350 350 350	335 366 3 76 115	- 92 .75 19 29	1:1 1:1 15.8:1 2.58:1 2:1	- 2:1 31.6:1 5.16:1 4:1
L-8520 L-8525 L-8530 L-8535 L-8540	P-9520 P-9525 P-9530 P-9535 P-9540	*4000ct 5000ct 5000ct 7500ct 7500ct	8000ct 500ct 5000ct 50ct 100ct	- 125 1250 12.5 25	.6 .6 .6 .6 .6	.4 .4 .4 .4 .4	.3 .3 .3 .3 .3	2.0 2.0 2.0 1.5 1.5	350 350 390 600 600	1062 67 538 7 12	- 17 135 1.75 3	1:1.41 3.16:1 1:1 12.2:1 8.66:1	- 6.32:1 2:1 24.5:1 17.3:1
L-8545 L-8550 L-8555 L-8560 L-8565	P-9545 P-9550 P-9555 P-9560 P-9565	7500ct 7500ct *7500ct 8000ct 8000ct	600ct 2500ct 7500ct 12.8ct 1000ct	150 625 - 3.2 250	.6 .6 .6 .6 .6	.4 .4 .4 .4 .4	.3 .3 .3 .3 .3	1.5 1.5 1.5 1.5 1.5	600 600 750 750 750	78 305 828 1.7 115	19.5 77 - .43 29	3.54:1 1.73:1 1:1 25:1 2.83:1	7.07:1 3.46:1 - 50:1 5.66:1
L-8570 L-8575 L-8580 L-8585 L-8590	P-9570 P-9575 P-9580 P-9585 P-9590	8000ct 9000ct 10,000ct 10,000ct 10,000ct	1200ct 9000ct 12.8ct 16ct 100ct	- - 3.2 4 25	.6 .6 .6 .6 .6	.4 .4 .4 .4 .4	.3 .3 .3 .3 .3	1.5 1.4 1.4 1.4 1.4	750 796 1048 1048 839	158 1100 1.7 3 12	- - .43 .75 3	2:58:1 1:1 28:1 25:1 10:1	- - 56:1 50:1 20:1
L-8595 L-8600 L-8605 L-8610 L-8615	P-9595 P-9600 P-9605 P-9610 P-9615	10,000ct 10,000ct 10,000ct 10,000ct 10,000ct	200ct 500ct 600ct 1000ct 1200ct	50 125 150 250 300	.6 .6 .6 .6 .6	.4 .4 .4 .4 .4	.3 .3 .3 .3 .3	1.4 1.4 1.4 1.4 1.4	839 850 850 850 850	27 67 74 115 158	6.7 17 18.5 29 39.5	7.07:1 4.47:1 4.08:1 3.16:1 2.89:1	14.14:1 8.94:1 8.16:1 6.32:1 5.77:1
L-8620 L-8625 L-8630 L-8635 L-8640	P-9620 P-9625 P-9630 P-9635 P-9640	10,000ct 10,000ct 10,000ct 10,000ct 10,000ct	1500ct 2000ct 5000ct 7500ct 10,000ct	375 500 1250 1875 2500	.6 .6 .6 .6 .6	.4 .4 .4 .4 .4	.3 .3 .3 .3 .3	1.4 1.4 1.4 1.4 1.4	850 850 850 850 866	177 255 630 772 1215	44 64 158 193 304	2.58:1 2.24:1 1.41:1 1.15:1 1:1	5.16:1 4.47:1 2.83:1 2.3:1 2:1
L-8645 L-8650 L-8652 L-8655 L-8660	P-9645 P-9650 P-9652 P-9655 P-9660	*10,000ct 15,000ct 15,000ct 15,000ct 15,000ct	10,000ct 400ct 500ct 600ct 10,000ct	- 100 125 150 2500	.6 .6 .6 .6 .6	.4 .4 .4 .4 .4	.3 .3 .3 .3 .3	1.4 1.0 1.0 1.0 1.0	1060 1305 1305 1305 1305	1215 47 53 72.5 1215	- 12 13 18 304	1:1 6.12:1 5.48:1 5:1 1.22:1	- 12.24:1 10.95:1 10:1 2.45:1
L-8665 L-8670 L-8675 L-8680 L-8685	P-9665 P-9670 P-9675 P-9680 P-9685	*15,000ct 15,000ct 16,000ct 20,000ct 20,000ct	15,000ct 15,000ct 1000ct 500ct 600ct	- 3750 250 125 150	.6 .6 .6 .5 .5	.4 .4 .4 .4 .4	.3 .3 .3 .3 .3	1.0 1.0 1.0 1.0 1.0	1305 1305 1343 1560 1560	1800 1800 115 68 75	- 450 29 17 19	1:1 1:1 4:1 6.33:1 5.77:1	- 2:1 8:1 12.65:1 11.55:1

Ultra Miniature Transformers: L Series Thru Hole and P Series Insulated Leads
Pico Part Number		Prim. Imped. Ohms	Sec. Imped. Ohms Split Windings		Power Watts			Prim. Unbal. DC Curr. ma	Prim. DC Resist. Ohms	Sec. DC Resist. Ohms		Turns Ratio Prim/Sec.
L Series Thru Hole	P Series Insul. Leads	Prim. Imped. Ohms	SER	PAR	1 KHz and higher	400 Hz and higher	300 Hz and higher	Prim. Unbal. DC Curr. ma	Prim. DC Resist. Ohms	Ser Conn	Par Conn	Sec Ser Conn	Sec Par Conn
L-8690 L-8695 L-8700 L-8705 L-8710	P-9690 P-9695 P-9700 P-9705 P-9710	20,000ct 20,000ct 20,000ct 20,000ct *20,000ct	800ct 1000ct 5000ct 10,000ct 20,000ct	200 250 1250 2500 -	.5 .5 .5 .5 .5	.4 .4 .4 .4 .4	.3 .3 .3 .3 .3	1.0 1.0 1.0 1.0 1.0	1560 1560 1560 1560 1560	108 121 672 1520 2727	27 30.5 168 380 682	5:1 4.47:1 2:1 1.41:1 1:1	10:1 8.94:1 4:1 2.83:1 -
L-8715 L-8720 L-8725 L-8730 L-8732	P-9715 P-9720 P-9725 P-9730 P-9732	25,000ct 25,000ct 30,000ct 30,000ct 30,000ct	500ct 1000ct 50ct 1200ct 500ct	125 250 12.5 300 125	.4 .4 .33 .33 .33	.4 .4 .33 .33 .33	.3 .3 .3 .3 .3	0.8 0.8 0.8 0.8 0.8	2170 2170 2400 2400 2400	68 120 7 156 68	17 30 1.75 39 17	7.07:1 5:1 24.5:1 5:1 7.75:1	14.14:1 10:1 49:1 10:1 15.5:1
L-8734 L-8735 L-8740 L-8745 L-8750	P-9734 P-9735 P-9740 P-9745 P-9750	30,000ct 30,000ct 30,000ct *30,000ct 40,000ct	200ct 5000ct 10,000ct 30,000ct 400ct	50 1250 2500 - 100	.33 .33 .33 .33 .25	.33 .33 .33 .33 .25	.3 .3 .3 .3 .25	0.8 0.8 0.8 0.8 0.7	2400 2400 2400 3000 3400	29 673 1520 3310 57	7.2 169 380 - 14.3	12.25:1 2.45:1 1.73:1 1:1 10:1	24.5:1 4.9:1 3.46:1 - 20:1
L-8755 L-8760 L-8765 L-8770 L-8775	P-9755 P-9760 P-9765 P-9770 P-9775	40,000ct 40,000ct 40,000ct *40,000ct 50,000ct	2000ct 4000ct 20,000ct 40,000ct 200ct	500 1000 5000 - 50	.25 .25 .25 .25 .2	.25 .25 .25 .25 .2	.25 .25 .25 .25 .2	0.7 0.7 0.7 0.7 0.6	3400 3400 3400 3400 4850	268 476 2700 4750 27	67 119 675 - 6.7	4.47:1 3.16:1 1.41:1 1:1 15.8:1	8.94:1 6.32:1 2.83:1 - 31.6:1
L-8777 L-8779 L-8780 L-8785 L-8787	P-9777 P-9779 P-9780 P-9785 P-9787	50,000ct 50,000ct 60,000ct 62,500ct 80,000ct	500ct 600ct 15,000ct 50ct 15,000ct	125 150 3750 12.5 3750	.2 .2 .16 .16 .12	.2 .2 .16 .16 .12	.2 .2 .16 .16 .12	0.6 0.6 0.5 0.5 0.4	4850 4850 5275 5445 6130	68 75 2250 8.7 2250	17 18.5 563 2.2 563	10:1 9.13:1 2:1 35.4:1 2.3:1	20:1 18.26:1 4:1 70.7:1 4.6:1
L-8790 L-8795 L-8800 L-8805 L-8810 L-8815	P-9790 P-9795 P-9800 P-9805 P-9810 P-9815	90,000ct 95,000ct 100,000ct 100,000ct 100,000ct 100,000ct	10,000ct 15,000ct 60ct 100ct 500ct 10,000ct	2500 3750 15 25 125 2500	.1 .1 .1 .1 .1 .1	.1 .1 .1 .1 .1 .1	.1 .1 .1 .1 .1 .1	0.4 0.4 0.4 0.4 0.4 0.4	8140 8400 8750 8750 8750 8750	1520 2250 9.2 15 68 1535	380 563 2.3 3.8 17 385	3:1 2.52:1 40.8:1 31.6:1 14.1:1 3.16:1	6:1 5.03:1 81.6:1 63.2:1 28.3:1 6.32:1
