EC2SBW-24D15隔離開式DC-DC電原模組CINCON

分享時(shi)間：2024-05-10 11:40:43 閱讀：6107

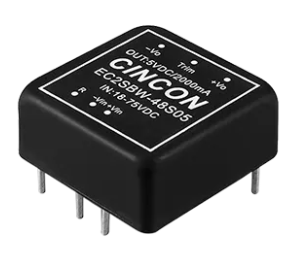

EC2SBW系列電源模塊

EC2SBW系列電源模塊是由CINCON生(sheng)產的(de)一(yi)種(zhong)電源模塊，具有(you)以下(xia)特性：

10W 屏蔽輸入1“×1”×0.4“ 攔截材料殼體速度超過86%4：1 讀取比率穩壓輸入手機輸入欠壓庇護遠程電腦開/關不間斷短路故障保護的內部組織無鉭電容（電儲槽）器安會包含 IEC/EN/UL 62368-1

產品型號：

MODEL NUMBER	INPUT VOLTAGE	OUTPUT VOLTAGE	OUTPUT CURRENT		NPUT CURRENT		% EFF.	CAPACITOR LOAD MAX.
MODEL NUMBER	INPUT VOLTAGE	OUTPUT VOLTAGE	MIN	MAX.	NO LOAD	FULL LOAD	% EFF.	CAPACITOR LOAD MAX.
EC2SBW-24S33	9-36 VDC	3.3 VDC	0 mA	2500 mA	5 mA	425 mA	81	3300uF
EC2SBW-24S05	9-36 VDC	5 VDC	0 mA	2000 mA	5 mA	496 mA	84	2200uF
EC2SBW-24S12	9-36 VDC	12 VDC	0 mA	835 mA	10 mA	486 mA	86	1000uF
EC2SBW-24S15	9-36 VDC	15 VDC	0 mA	666 mA	10 mA	486 mA	86	680uF
EC2SBW24D05	9-36 VDC	±5VDC	0 mA	±1000 mA	10 mA	496 mA	84	1200uF
EC2SBW-24D12	9-36 VDC	±12 VDC	0 mA	±416 mA	10 mA	486 mA	86	470uF
EC2SBW-24D15	9-36 VDC	±15 VDC	0 mA	±333 mA	10 mA	486 mA	86	330uF
EC2SBW-48S33	18-75 VDC	3.3 VDC	0 mA	2500 mA	5 mA	210 mA	82	3300uF
EC2SBW-48S05	18-75 VDC	5 VDC	0 mA	2000 mA	5 mA	248 mA	84	2200uF
EC2SBW-48S12	18-75 VDC	12 VDC	0 mA	835 mA	5 mA	243 mA	86	1000uF
EC2SBW-48S15	18-75 VDC	15 VDC	0 mA	666 mA	5 mA	243 mA	86	680uF
EC2SBW-48D05	18-75 VDC	±5 VDC	0 mA	±1000 mA	5 mA	248 mA	84	1200uF
EC2SBW-48D12	18-75 VDC	±12 VDC	0 mA	±416 mA	8 mA	243 mA	86	470uF
EC2SBW-48D15	18-75 VDC	±15 VDC	0mA	±333 mA	8 mA	243 mA	86	330uF
