?SMT底部隔離器和巡環器RF-Labs

發布了時：2024-01-08 16:57:19     訪問：985

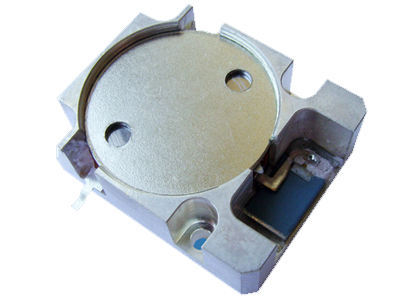

RF-Labs的SMT隔離器和不斷循環器面上貼裝能力更適合用在拾放和吸附氬弧焊。SMT防護器和反復器的開發運轉頻段從L到X聲音頻率段，適合用在通迅網路、服務業南航電子為了滿足電子時代發展的需求，設計并且 的使用接觸面貼裝技術性(SMT)面積明顯的 AESA 施工。

與此相等的Ck線(xian)Radalt SMT隔(ge)開(kai)器已帶來了稍微超出15年，并(bing)選用(yong)(yong)于(yu)全環境50%大于(yu)的商(shang)用(yong)(yong)飛機運載機隊相(xiang)應(ying)用(yong)(yong)的統(tong)計較高估測(ce)儀。


Operating Band [GHz]

Function

Base Package Footprint WDH [mm x mm]

Power Handling [W Peak]

Notes

1.2 to 1.4

Circulator

25.4 x 25.4 x 7.8

450

This is a “T” configuration device.

1.2 to 1.4

Isolator

25.4 x 31.7 x 7.8

450

Termination rating is specification dependant.

1.2 to 1.4

Duplexer

25.4 x 59.0 x 7.8

450

3 and 4 access port variants available.

2.7 to 3.3

Circulator

19.05 x 19.05 x 6.35

200

A more compact version operating at 40W CW.

2.7 to 3.3

Isolator

19.05 x 25.4 x 6.35

200

Termination rating is specification dependant.

2.7 to 3.3

Duplexer

19.05 x 44.1 x 6.35

200

3 and 4 access port variants available.

2.7 to 3.1

Circulator

19.05 x 19.05 x 6.35

200

This is a “T” configuration device.

2.7 to 3.1

Isolator

19.05 x 25.4 x 6.35

200

Termination rating is specification dependant.

2.7 to 3.1

Duplexer

19.05 x 44.1 x 6.35

200

This is a “T” configuration device.

2.9 to 3.4

Isolator

19.05 x 19.05 x 6.30

200

Termination rating is specification dependant.

2.9 to 3.4

Circulator

19.05 x 25.5 x 6.30

200

This is a “T” configuration device.

2.9 to 3.4

Duplexer

19.05 x 46.5 x 6.30

200

3 and 4 access port variants available.

3.1 to 3.5

Isolator

12.7 x 12.7 x 6.35

200

This is a “T” configuration device.

3.1 to 3.5

Circulator

12.7 x 19.05 x 6.35

200

This is a “T” configuration device.

3.1 to 3.5

Duplexer

12.7 x 25.4 x 6.35

200

3 and 4 access port variants available.

5.2 to 5.9

Circulator

12.7 x 12.7 x 5.1

50

This is a “T” configuration device.

5.2 to 5.9

Isolator

12.7 x 25.4 x 5.1

50

Termination rating is specification dependant.

5.2 to 5.9

Circulator

12.7 x 24.6 x 5.1

50

This is a “T” configuration device.

8.0 to 12.0

Circulator

12.7 x 12.7 x 3.5

50

This is a “T” configuration device.

8.0 to 12.0

Isolator

12.7 x 10.0 x 3.5

50

This is a “T” configuration device.

8.0 to 12.0

Duplexer

12.7 x 16.0 x 3.5

50

Refer to factory for alternative footprints.
