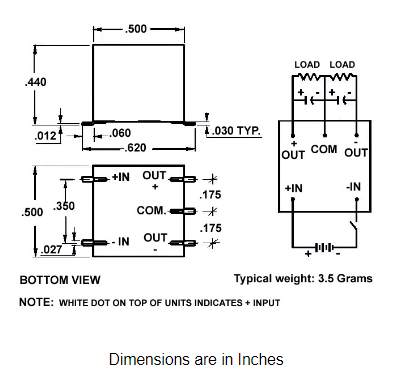

28AV500小形壓力電源線模組DC-DC
正式發布時間：2023-10-17 16:50:13 訪問 ：1060
英國PICO的高(gao)壓DC-DC交流電源開關接口類型商品，供應層次性化的各類高壓交流電源開關接口，商品質量小至12.7mm*12.7mm長寬，重量不到4g，輸出電壓高達10KV,
PICO高壓DC-DC電源模塊產品，符合美軍標(biao)(biao)MIL-STD-883標(biao)(biao)準(zhun)，工作溫度支持-55°C至+85°C，而不需(xu)要散(san)熱器。
插件機尺寸 | 貼片型號規格 | Input | Output | Max. | Max. | Eff. @ | Input | * | ** |
Volt. | Volt. | Load | Output | Full | Current | Output | Full |
(V DC) | (V DC) | Current | Power | Load | Full | Volt. | Load |
|
| (mA) | (watts) | Typical | Load | Ripple | Output |
|
|
|
| (%) | Typical | @ Full | Volt. |
|
|
|
|
| (mA) | Load | Tolerance |
|
|
|
|
|
| (Vp-p max) | (± %) |
|
|
|
|
|
|
|
|
5AV100 | 5SMV100 | 5 | 100 | 12.5 | 1.25 | 78 | 321 | 0.9 | 3 |
5AV150 | 5SMV150 | 5 | 150 | 8.3 | 1.25 | 76 | 329 | 0.9 | 3 |
5AV200 | 5SMV200 | 5 | 200 | 6.25 | 1.25 | 75 | 333 | 0.9 | 3 |
5AV250 | 5SMV250 | 5 | 250 | 5 | 1.25 | 75 | 333 | 0.9 | 3 |
5AV300 | 5SMV300 | 5 | 300 | 4.16 | 1.25 | 70 | 357 | 1.2 | 3 |
5AV350 | 5SMV350 | 5 | 350 | 3.57 | 1.25 | 70 | 357 | 1.2 | 3 |
5AV400 | 5SMV400 | 5 | 400 | 3.12 | 1.25 | 70 | 357 | 1.2 | 3 |
5AV450 | 5SMV450 | 5 | 450 | 2.77 | 1.25 | 70 | 357 | 1.5 | 3 |
5AV500 | 5SMV500 | 5 | 500 | 2.5 | 1.25 | 70 | 357 | 1.5 | 3 |
12AV100 | 12SMV100 | 12 | 100 | 12.5 | 1.25 | 80 | 130 | 0.9 | 3 |
12AV150 | 12SMV150 | 12 | 150 | 8.3 | 1.25 | 79 | 132 | 0.9 | 3 |
12AV200 | 12SMV200 | 12 | 200 | 6.25 | 1.25 | 78 | 134 | 0.9 | 3 |
12AV250 | 12SMV250 | 12 | 250 | 5 | 1.25 | 75 | 139 | 0.9 | 3 |
12AV300 | 12SMV300 | 12 | 300 | 4.16 | 1.25 | 75 | 139 | 1.2 | 3 |
12AV350 | 12SMV350 | 12 | 350 | 3.57 | 1.25 | 75 | 139 | 1.2 | 3 |
12AV400 | 12SMV400 | 12 | 400 | 3.12 | 1.25 | 75 | 139 | 1.2 | 3 |
12AV450 | 12SMV450 | 12 | 450 | 2.77 | 1.25 | 75 | 139 | 1.5 | 3 |
12AV500 | 12SMV500 | 12 | 500 | 2.5 | 1.25 | 75 | 139 | 1.5 | 3 |
15AV100 | 15SMV100 | 15 | 100 | 12.5 | 1.25 | 80 | 104 | 0.9 | 3 |
15AV150 | 15SMV150 | 15 | 150 | 8.3 | 1.25 | 79 | 105 | 0.9 | 3 |
15AV200 | 15SMV200 | 15 | 200 | 6.25 | 1.25 | 78 | 107 | 0.9 | 3 |
15AV250 | 15SMV250 | 15 | 250 | 5 | 1.25 | 75 | 111 | 0.9 | 3 |
15AV300 | 15SMV300 | 15 | 300 | 4.16 | 1.25 | 75 | 111 | 1.2 | 3 |
15AV350 | 15SMV350 | 15 | 350 | 3.57 | 1.25 | 75 | 111 | 1.2 | 3 |
15AV400 | 15SMV400 | 15 | 400 | 3.12 | 1.25 | 75 | 111 | 1.2 | 3 |
15AV450 | 15SMV450 | 15 | 450 | 2.77 | 1.25 | 75 | 111 | 1.5 | 3 |
15AV500 | 15SMV500 | 15 | 500 | 2.5 | 1.25 | 75 | 111 | 1.5 | 3 |
24AV100 | 24SMV100 | 24 | 100 | 12.5 | 1.25 | 76 | 69 | 0.9 | 3 |
24AV150 | 24SMV150 | 24 | 150 | 8.3 | 1.25 | 73 | 71 | 0.9 | 3 |
24AV200 | 24SMV200 | 24 | 200 | 6.25 | 1.25 | 73 | 71 | 0.9 | 3 |
24AV250 | 24SMV250 | 24 | 250 | 5 | 1.25 | 70 | 74 | 0.9 | 3 |
24AV300 | 24SMV300 | 24 | 300 | 4.16 | 1.25 | 73 | 71 | 1.2 | 3 |
24AV350 | 24SMV350 | 24 | 350 | 3.57 | 1.25 | 73 | 71 | 1.2 | 3 |
24AV400 | 24SMV400 | 24 | 400 | 3.12 | 1.25 | 73 | 71 | 1.2 | 3 |
24AV450 | 24SMV450 | 24 | 450 | 2.77 | 1.25 | 73 | 71 | 1.5 | 3 |
24AV500 | 24SMV500 | 24 | 500 | 2.5 | 1.25 | 73 | 71 | 1.5 | 3 |
28AV100 | 28SMV100 | 28 | 100 | 12.5 | 1.25 | 75 | 60 | 0.9 | 3 |
28AV150 | 28SMV150 | 28 | 150 | 8.3 | 1.25 | 76 | 59 | 0.9 | 3 |
28AV200 | 28SMV200 | 28 | 200 | 6.25 | 1.25 | 75 | 60 | 0.9 | 3 |
28AV250 | 28SMV250 | 28 | 250 | 5 | 1.25 | 70 | 64 | 0.9 | 3 |
28AV300 | 28SMV300 | 28 | 300 | 4.16 | 1.25 | 73 | 61 | 1.2 | 3 |
28AV350 | 28SMV350 | 28 | 350 | 3.57 | 1.25 | 73 | 61 | 1.2 | 3 |
28AV400 | 28SMV400 | 28 | 400 | 3.12 | 1.25 | 73 | 61 | 1.2 | 3 |
28AV450 | 28SMV450 | 28 | 450 | 2.77 | 1.25 | 73 | 61 | 1.5 | 3 |
PICO的(de)電(dian)源開關摸塊(kuai)商品，運(yun)用于核(he)工(gong)業核(he)工(gong)業、軍事、儀表板(ban)等(deng)物料，其商品產(chan)品質量提升無(wu)數高是真的(de)嗎(ma)性標準信(xin)賴。
深圳市立(li)維創(chuang)展科(ke)技(ji)是(shi)PICO公司的分銷(xiao)商(shang)。提供進口PICO電(dian)源開(kai)(kai)(kai)(kai)關(guan)(guan)(guan)(guan)接(jie)口(kou)(kou)(kou)(kou)線(xian)組(zu)件(jian)、軍工用電(dian)源開(kai)(kai)(kai)(kai)關(guan)(guan)(guan)(guan)接(jie)口(kou)(kou)(kou)(kou)線(xian)組(zu)件(jian)、油田電(dian)源開(kai)(kai)(kai)(kai)關(guan)(guan)(guan)(guan)接(jie)口(kou)(kou)(kou)(kou)線(xian)組(zu)件(jian)、大中型(xing)配(pei)電(dian)變壓器(qi)(qi)、MIL-PRF-21038/27產品規格(ge)箱式電(dian)抗器(qi)(qi)、激光脈沖(chong)箱式電(dian)抗器(qi)(qi)、400 MHz電(dian)力(li)設備配(pei)電(dian)變壓器(qi)(qi)、MIL-STD-1553插(cha)口(kou)(kou)(kou)(kou)電(dian)力(li)電(dian)力(li)變壓器(qi)(qi)、聲頻電(dian)力(li)電(dian)力(li)變壓器(qi)(qi)、工作效(xiao)率(lv)(lv)電(dian)感、超小(xiao)型(xing)工作效(xiao)率(lv)(lv)電(dian)感、EMI電(dian)感、薄DC-直流(liu)(liu)交流(liu)(liu)電(dian)源交流(liu)(liu)電(dian)源版塊(kuai)、警(jing)用DC-DC開(kai)(kai)(kai)(kai)關(guan)(guan)(guan)(guan)電(dian)源信息模(mo)(mo)(mo)塊(kuai)、磚塊(kuai)DC-DC開(kai)(kai)(kai)(kai)關(guan)(guan)(guan)(guan)電(dian)源模(mo)(mo)(mo)塊(kuai)圖片(pian)、高壓力(li)DC-DC、AC-DC24v電(dian)源開(kai)(kai)(kai)(kai)關(guan)(guan)(guan)(guan)開(kai)(kai)(kai)(kai)關(guan)(guan)(guan)(guan)開(kai)(kai)(kai)(kai)關(guan)(guan)(guan)(guan)啟閉模(mo)(mo)(mo)快、啟閉整流(liu)(liu)24v電(dian)源開(kai)(kai)(kai)(kai)關(guan)(guan)(guan)(guan)開(kai)(kai)(kai)(kai)關(guan)(guan)(guan)(guan)開(kai)(kai)(kai)(kai)關(guan)(guan)(guan)(guan)啟閉模(mo)(mo)(mo)快、隔離(li)防曬24v電(dian)源開(kai)(kai)(kai)(kai)關(guan)(guan)(guan)(guan)開(kai)(kai)(kai)(kai)關(guan)(guan)(guan)(guan)開(kai)(kai)(kai)(kai)關(guan)(guan)(guan)(guan)啟閉模(mo)(mo)(mo)快、航材24v電(dian)源開(kai)(kai)(kai)(kai)關(guan)(guan)(guan)(guan)開(kai)(kai)(kai)(kai)關(guan)(guan)(guan)(guan)開(kai)(kai)(kai)(kai)關(guan)(guan)(guan)(guan)啟閉模(mo)(mo)(mo)快等能力(li)24v電(dian)源開(kai)(kai)(kai)(kai)關(guan)(guan)(guan)(guan)開(kai)(kai)(kai)(kai)關(guan)(guan)(guan)(guan)開(kai)(kai)(kai)(kai)關(guan)(guan)(guan)(guan)啟閉模(mo)(mo)(mo)快和輸出轉(zhuan)化(hua)器(qi)(qi)。正品好產品進口(kou)(kou)(kou)(kou)清關(guan)(guan)(guan)(guan)，質理要確保，邀請資訊。
詳細信息熟悉PICO電源開關輸出模塊請超鏈接：//www.gyzhkj.com/brand/15.html
