?2 路、3 路、4 路、6 路和 8 路工作功率都分配好器MegaPhase
上傳日期(qi)：2023-03-07 16:55:55 挑選：901
MegaPhase利用其2路、3路、4路、6路和8路耗油率分銷器增配，為低耗油率和高耗油率統計數據技木適用應有低插進損失加工處理方案范文。MegaPhase所采用集總開關元件或帶狀線供電技術水平，的標準及好產品來樣加工提供高接口到接口要進行隔離和嚴于的相位容差下列不屬于合適VSWR。
SMA相(xiang)連器，應具3.5mm、2.92mm和2.4mm連接方式(shi)器
0.5–40GHz、倍頻程和多倍頻程上行速率
低(di)插入表格耗損和(he)波幅(fu)穩定性
滿意MIL-DTL-23971
滿足事業區域選購
MegaPhasemm毫米(mi)波元電子(zi)原件確立于1998年，是歐(ou)美廣為人知的(de)紅(hong)外(wai)光(guang)纜線(xian)(xian)(xian)供貨商(shang)。MegaPhase欧美亚洲一区(qu)-欧美激情一区(qu)-欧洲一区(qu)二区(qu)-欧美激情一区(qu)二区(qu)設計(ji)和(he)種(zhong)植高準確性rf射頻(pin)同(tong)定(ding)位(wei)軸線(xian)(xian)(xian)纜、聯(lian)接器產(chan)(chan)品設備，MegaPhase毫米(mi)（mm）波資料(liao)(liao)線(xian)(xian)(xian)軟件大范圍采用(yong)產(chan)(chan)品于微波加(jia)熱(re)加(jia)熱(re)于微波加(jia)熱(re)加(jia)熱(re)于光(guang)電材(cai)料(liao)(liao)系統化，愈加(jia)是測(ce)評、防(fang)務光(guang)電、無(wu)線(xian)(xian)(xian)電力衛星無(wu)線(xian)(xian)(xian)電力、聯(lian)通寬(kuan)帶資料(liao)(liao)無(wu)線(xian)(xian)(xian)電力等。MegaPhase服(fu)務線(xian)(xian)(xian)概率可以達(da)到到DC-110GHz.
河南市立維創展科技信息(xi)授權(quan)文(wen)件(jian)地(di)區代理市場(chang)銷售(shou)MegaPhase產品，主要展示 MegaPhase產品的(de)的(de)穩相通信電纜(lan)電線和(he)通信電纜(lan)電線器(qi)件(jian)，并帶來售(shou)后維修點適(shi)用提(ti)供服(fu)務，認(ren)可了解和(he)咨詢(xun)。
詳細信息明白MegaPhase微波射頻電力電纜請彈框：//www.gyzhkj.com/brand/40.html
2 Way Power Divider
Model No. | Type | Freq (GHz) | Connectors | Isolation (dB, Min) | Insertion Loss (dB , Max) | Phase Balance (deg.,Max) | Amplitude Balance (dB, Max.) | VSWR Input (x.xx:1, max.) | VSWR Output (x.xx:1, max.) | CW Input(W) @ Load VSWR Out 1.2:1 | CW Input(W) @ Load VSWR Out 2.0:1 | Size |
PD12-2N-3.25 | 2way | .5 -6GHz | N-F | 17 | 1.3 | 4 | 0.4 | 1.6 | 1.35 | 30 | 10 | 3.25x2.46x.75 |
PD12-2S-3.25G | 2way |
| SMA-F |
| 1.3 |
| 0.4 |
|
|
|
| 3.25x2.46x.75 |
PD16-2S-4.25G | 2way | .5-8GHz | SMA-F | 16 | 0.8 | 6 | 0.9 | 1.5 | 1.5 | 20 | 5 | 4.75x1.00x.38 |
PD36-2S-9.2G | 2way | .5-18GHz | SMA-F | 14 | 1.9 | 10 | 0.9 | 1.8 | 1.8 | 20 | 5 | 4.75x1.00x.38 |
PD9-2S-10G | 2way | 2-18GHz | SMA-F | 15 | 1 | 5 | 0.5 | 1.6 | 1.6 | 10 | 1 | 2.25x1.00x.38 |
PD4-2S-11G | 2way | 4-18GHz | SMA-F | 18 | 0.6 | 4 | 0.5 | 1.6 | 1.4 | 10 | 1 | 1.00x1.00x.38 |
3 Way Power Divider
Model No. | Type | Freq (GHz) | Connectors | Isolation (dB, Min) | Insertion Loss (dB , Max) | Phase Balance (deg.,Max) | Amplitude Balance (dB, Max.) | VSWR Input (x.xx:1, max.) | VSWR Output (x.xx:1, max.) | CW Input(W) @ Load VSWR Out 1.2:1 | CW Input(W) @ Load VSWR Out 2.0:1 | Size |
PD9-3S-10G | 3way | 2-18GHz | SMA-F | 15 | 1.3 | 5 | 1 | 2 | 1.8 | 10 | 1 | 4.46x2.46x.38 |
4 Way Power Divider
Model No. | Type | Freq (GHz) | Connectors | Isolation (dB, Min) | Insertion Loss (dB , Max) | Phase Balance (deg.,Max) | Amplitude Balance (dB, Max.) | VSWR Input (x.xx:1, max.) | VSWR Output (x.xx:1, max.) | CW Input(W) @ Load VSWR Out 1.2:1 | CW Input(W) @ Load VSWR Out 2.0:1 | Size |
PD16-2S-4.25 | 4way | .5-8GHz | SMA-F | 15 | 4 | 8 | 1 | 1.9 | 1.6 | 20 | 5 | 6.25x2.97x.38 |
PD36-4S-9.2G | 4way | .5-18GHz | SMA-F | 15 | 4 | 8 | 1 | 1.9 | 1.6 | 20 | 5 | 6.25x2.97x.38 |

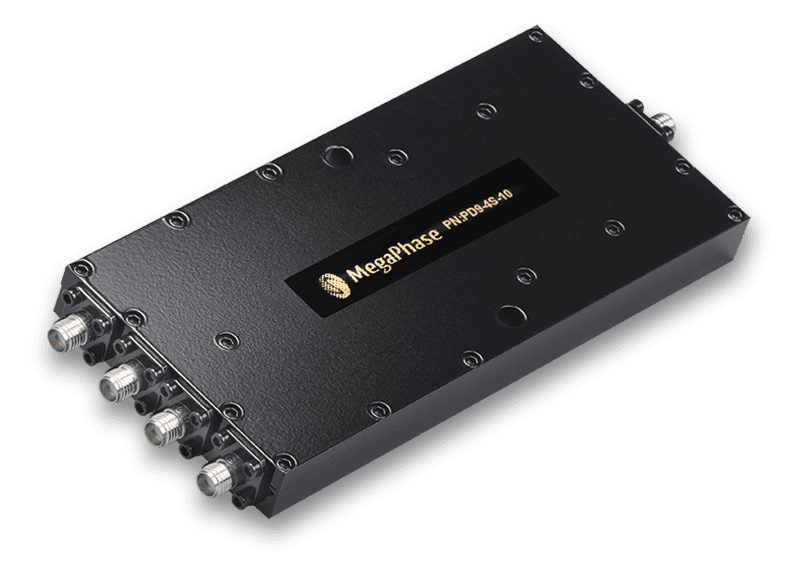

PD9-4S-10G | 4way | 2-18GHz | SMA-F | 16 | 1.6 | 6 | 0.8 | 1.8 | 1.5 | 30 | 10 | 4.0x2.5x.38 |
PD4-4S-11G | 4way | 4-18GHz | SMA-F | 18 | 1.2 | 10 | 0.8 | 1.8 | 1.6 | 30 | 10 | 1.98x1.46x.38 |
6 Way Power Divider
Model No. | Type | Freq (GHz) | Connectors | Isolation (dB, Min) | Insertion Loss (dB , Max) | Phase Balance (deg.,Max) | Amplitude Balance (dB, Max.) | VSWR Input (x.xx:1, max.) | VSWR Output (x.xx:1, max.) | CW Input(W) @ Load VSWR Out 1.2:1 | CW Input(W) @ Load VSWR Out 2.0:1 | Size |
PD9-6S-10G | 6way | 2-18GHz | SMA-F | 15 | 1.9 | 12 | 1 | 2 | 1.5 | 25 | 7 | 6.00x4.00x.38 |
8 Way Power Divider
Model No. | Type | Freq (GHz) | Connectors | Isolation (dB, Min) | Insertion Loss (dB , Max) | Phase Balance (deg.,Max) | Amplitude Balance (dB, Max.) | VSWR Input (x.xx:1, max.) | VSWR Output (x.xx:1, max.) | CW Input(W) @ Load VSWR Out 1.2:1 | CW Input(W) @ Load VSWR Out 2.0:1 | Size |
PD9-8S-10G | 8way | 2-18GHz | SMA-F | 16 | 2.4 | 10 | 1 | 1.9 | 1.5 | 25 | 7 | 5.75x4.46x.38 |
