?CINCON機箱進行安裝/DIN 導軌 20-750W
推出(chu)日子：2023-01-05 16:42:45 瀏覽器：710

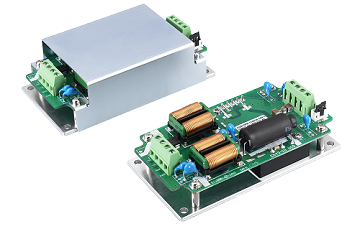

CINCON展示20W-750W、機箱布置和DIN導軌DC-DC裝換器，必備集合化，散熱處理片，散熱處理器以激發熱性食物能。CINCON機箱布置/DIN導軌優點主要包括寬放入範圍、放入過線電壓防護、穩壓電式路讀取和間隔過流防護。
特色
使用率高達(da)獨角獸88%
結實運行頻繁
穩電容式路輸出
負方式(shi)遠距離調節開/關
低空載技能耗率
全部分擔保（OTP/OCP/OVP/UVLO）
3000VacI/O防護
直流電(dian)壓摸塊的UL62368-1第二(er)點（加強(qiang)(qiang)介(jie)電(dian)強(qiang)(qiang)度(du)性）企業認證
安全(quan)性足夠(gou)IEC/EN/UL62368-1
地盤拆卸，底板空調制(zhi)熱
低浪涌直流電壓
填寫反接保護好
EN50155 ClassS3/Class C2 CriteriaA無第三方電(dian)解電(dian)容
輸出電壓信息顯示燈
佛山市立維創展科技欧(ou)美(mei)亚洲一区(qu)(qu)-欧(ou)美(mei)激情一区(qu)(qu)-欧(ou)洲一区(qu)(qu)二区(qu)(qu)-欧(ou)美(mei)激情一区(qu)(qu)二区(qu)(qu)是CINCON交流(liu)電(dian)(dian)(dian)源(yuan)模塊圖片的(de)選擇銷(xiao)售商，打造CINCON開(kai)關電(dian)(dian)(dian)源(yuan)摸塊的(de)DC-DC互轉(zhuan)器、AC-DC電(dian)(dian)(dian)源(yuan)模塊、LED主機電(dian)(dian)(dian)源(yuan)等(deng)，類產(chan)品原廠進(jin)口(kou)，高質量保護，極(ji)高成本強勢，邀請詢問
內容明白CINCON電源線請單擊：//www.gyzhkj.com/article/2177.html
16:1 Input Range
Model | Power | Input Voltage | Output Voltage | Features | Dimensions (Inch) |
EC7BW18-ECRT/EDRT | 20W | 10~160V | 12V, 15V, 5V, ±12V, ±15V, ±24V | EN50155/ EN50121-3-2/ EN45545-2 Compliant
Low Inrush Current
Input Reverse Polarity Protection
EN50155 Class S3/ Class C2 Criteria A Without External Capacitor | 4.45x2.33x0.85
(ECRT)
4.45x2.33x1.43
(EDRT) |
12:1 Input Range
Model | Power | Input Voltage | Output Voltage | Features | Dimensions (Inch) |
CQB50W12-72SXX-CMFC(D) | 50W | 14~160V | 12V, 24V, 48V, 5V | Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant | 4.60x2.40x1.26
(CMFC)
4.60x2.49x1.35
(CMFD) |
8:1 Input Range
Model | Power | Input Voltage | Output Voltage | Features | Dimensions (Inch) |
CQB50W8-36SXX-CMFC(D) | 50W | 9.5~75V | 12V, 15V, 24V, 28V, 48V | Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant | 4.60x2.40x1.46
(CMFC)
4.60x2.49x1.46
(CMFD) |
CQB75W8-36SXX-CMFC(D) | 75W | 9.5~75V | 12V, 15V, 24V, 28V, 48V | Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant | 4.60x2.40x1.46
(CMFC)
4.60x2.49x1.46
(CMFD) |
4:1 Input Range
Model | Power | Input Voltage | Output Voltage | Dimensions (Inch) |
CHB/CHE50-100W-CM/DIN | 100W, 50W, 75W | 18~75V, 9~36V | 12V, 15V, 24V, 28V, 3.3V, 48V, 5V | 4.61x2.54x1.03 |
CQB/CQE50-150W-CM/DIN | 100W, 150W, 50W, 75W | 18~75V, 43~160V, 66~160V, 9~36V | 12V, 15V, 24V, 28V, 3.3V, 48V, 5V | 4.41x1.57x1.98 |
CQB100W-110SXX-CMFC(D) | 100W | 43~160V | 5V, 12V, 15V, 24V, 28V, 48V | 4.60x2.40x1.26
(CMFC)
4.60x2.49x1.35
(CMFD) |
CQB150W-110SXX-CMFC(D) | 150W | 43~160V | 3.3V, 5V, 12V, 15V, 24V, 28V, 48V | 4.60x2.40x1.26
(CMFC)
4.60x2.49x1.35
(CMFD) |
CHB200W-110SXX-CMFC(D) | 200W | 43~160V | 5V, 12V, 24V, 28V, 48V | 6.50x3.00x1.52
(CMFC)
6.50x3.09x1.57
(CMFD) |
CHB300W-110SXX-CMFC(D) | 300W | 43~160V | 3.3V, 5V, 12V, 24V, 28V, 48V | 6.50x3.00x1.52
(CMFC)
6.50x3.09x1.57
(CMFD) |
CFB600W-110SXX CMFD | 600W | 43~160VDC | 12V, 24V, 28V, 48V | 9.45x4.33x1.65 |
2:1 Input Range
Model | Power | Input Voltage | Output Voltage | Features | Dimensions (Inch) |
CQB75-300S-CMFC(D) | 75W | 180~450V | 3.3V, 5V, 12V, 15V, 24V, 48V | Screw Terminal
Build in filter
EN45545-2
Baseplate Cooled | 4.60x2.40x1.24
(CMFC)
4.60x2.49x1.35
(CMFD) |
CQB150-300SXX CMFC(D) | 150W | 180~425V | 5V, 12V, 15V, 24V, 28V, 48V | Screw Terminal
Build in filter
EN45545-2
Baseplate Cooled | 4.60x2.40x1.26
(CMFC)
4.60x2.49x1.35
(CMFD) |
CHB300-300SXX CMFC(D) | 300W | 180~425V | 12V, 24V, 28V, 48V, 5V | Screw Terminal
Build in filter
EN45545-2
Baseplate Cooled | 6.50x3.00x1.52
(CMFC)
6.50x3.09x1.57
(CMFD) |
CFB750-300SXX-CMFD | 750W | 200~425V | 12V, 15V, 24V, 28V, 36V, 48V | Screw Terminal
Build in filter
EN45545-2
Baseplate Cooled | 9.45x4.33x1.65 |
