CINCON DIP / SMD轉變器3-75W

發(fa)表精(jing)力：2022-11-22 16:54:15 瀏覽訪問：868

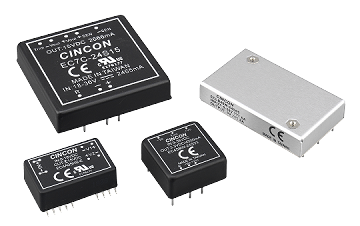

CINCON具備多種DIP DC-DC轉換器(qi)包(bao)，如3W到(dao)(dao)15W的DIP24或SMD24包(bao)，10W到(dao)(dao)30W的1個(ge)“x1”包(bao)，10W到(dao)(dao)75W的2個(ge)“x1”包(bao)，15W到(dao)(dao)40W的2個(ge)“x1.6”和2個(ge)“x2”包(bao)。CINCON具有超出29年的科研(yan)開發經(jing)驗(yan)，致力(li)于鐵路交通、工業生產(chan)、it、5G電信(xin)、醫療(liao)和家庭(ting)等應用領域。

對于化(hua)工業研(yan)究方向，各種的(de)DIP DC-DC變為器都能以用在制造業(ye)的生產適用。

面向(xiang)公路交行這個領域，有能夠滿足EN50155的(de)DIP改變器(qi)，如DIP248W和(he)10W,2“x1”在20W和(he)40W的(de)二極管封裝中。還(huan)有就是，CINCON還(huan)出示2個“x1”，20W,18:1寬度(du)導入規模DC-DC準換(huan)器(qi)，以構成(cheng)大數(shu)據操(cao)作系(xi)統大量的(de)劃分(fen)式操(cao)作系(xi)統工作電(dian)流(liu)端電(dian)壓。

北京市(shi)市(shi)立維創展科持是CINCON開關電(dian)源(yuan)引擎的(de)(de)加盟代理代理商商，帶來CINCON主(zhu)機(ji)電(dian)源(yuan)引擎的(de)(de)DC-DC轉變器(qi)、AC-DC外接電(dian)源(yuan)、LED主(zhu)機(ji)電(dian)源(yuan)等，物料正品(pin)原(yuan)產(chan)，的(de)(de)品(pin)質后勤保障，非常具有價(jia)錢特色(se)，認(ren)可管理咨詢(xun)

淘寶手機端介紹CINCON主機電源請打開：//www.gyzhkj.com/article/2177.html

18:1 Input Range

Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)
EC7BW18	20W	8.5~160V	12V, 15V, 5V, ±12V, ±15V, ±24V	3KVac Isolation UL62368-1 EN45545-2 EN50155 Compliant	2.00x1.00x0.40(DIP)

4:1 Input Range

Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)
EC3AW	3W	18~72V, 9~36V	12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V	500/1.5K/3KVdc Isolation	1.25x0.80x0.40(DIP24) 1.25×0.80x0.45(SMD24)
EC4AW	6W	18~72V, 9~36V	12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V	1.5K/3KVdc Isolation	1.25x0.80x0.40(DIP24) 1.25×0.80x0.45(SMD24)
EC6AW	8W	18~75V, 9~36V	12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V	1.5KVdc Isolation EN50155 Compliant	1.25x0.80x0.40(DIP24) 1.25×0.80x0.45(SMD24)
EC2SBW	10W	18~75V, 9~36V	12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V	1.5KVdc Isolation	1.00x1.00x0.40(DIP)
EC4BW	10W	18~72V, 9~36V	12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V	500Vdc Isolation EN55022 Class A	2.00x1.00x0.40(DIP)
EC7AW	10W	18~74V, 9~36V	12V, 15V, 3.3V, 5V, ±12V, ±15V	3KVdc Isolation EN55032 Class A	1.25x0.80x0.40(DIP24)
EC6AW-110	10W	43~160V	12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V	3KVdc Isolation UL60950-1 & CB EN45545-2 EN50155 Compliant	1.25x0.80x0.50(DIP24)
EC8AW	15W	18~75V, 9~36V	12V, 15V, 3.3V, 5V, ±12V, ±15V	1.5KVdc Isolation EN55032 Class A	1.25x0.80x0.40(DIP24)
EC3SBW	15W	18~75V, 9~36V	12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V	1.5KVdc Isolation	1.00x1.00x0.40(DIP)
EC5BW	15W	18~75V, 9~36V	12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V	1.5KVdc Isolation EN55032 Class A	2.00x1.00x0.40(DIP)
EC5C	15W	18~72V, 9~36V	12V, 15V, 3.3V, 5/±12V, 5/±15V, 5V, ±12V, ±15V, ±5V	500Vdc Isolation EN60950-1	2.00x2.00x0.40(DIP)
EC1SC	20W	18~72V, 9~36V	12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V	EN55022 Class A	2.00×1.60×0.45(DIP)
EC4SBW	20W	18~75V, 9~36V	12V, 15V, 3.3V, 5V, ±12V, ±15V	1.5KVdc Isolation	1.00x1.00x0.40(DIP)
EC7BW-110	20W	43~160V	5V, 12V, 15V, ±12V, ±15V	3KVdc Isolation UL60950-1 EN45545-2 EN50155 Compliant	2.00x1.00x0.40(DIP)
EC7BW	20W	9~36V, 18~75V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	1.5KVdc Isolation EN45545-2 EN50155 Compliant	2.00x1.00x0.40(DIP)
EC3SCW	30W	18~75V, 9~36V	12V, 15V, 3.3V, 5V	1.5KVdc Isolation EN60950-1	2.00×1.60×0.40(DIP)
EC5SBW	30W	18~75V, 9~36V	12V, 15V, 3.3V, 5V, ±12V, ±15V	1.5KVdc Isolation UL62368-1	1.00x1.00x0.40(DIP)
EC9BW	30W	18~75V, 9~36V	12V, 15V, 3.3V, 5V, ±12V, ±15V	1.5KVdc Isolation	2.00x1.00x0.40(DIP)
ECLB40W	40W	18~75V, 9~36V	12V, 15V, 3.3V, 5V, ±12V, ±15V	1.5KVdc Isolation With Mounting Inserts	2.05x1.20x0.40(DIP)
ECLB40W-110	40W	43~160V	12V, 15V, 3.3V, 5V, ±12V, ±15V, ±24V	3KVdc Isolation UL60950-1 EN45545-2 EN50155 Compliant	2.05x1.20x0.40(DIP)
ECLB60W	60W	18~75V, 9~36V	3.3V, 5V, 12V, 15V, ±12V, ±15V	1.5KVdc Isolation With Mounting Inserts	2.05x1.20x0.40(DIP)
ECLB75W	75W	18~75V, 9~36V	5V, 12V, 15V, ±12V, ±15V, ±24V	2.25KVdc Isolation With Mounting Inserts	2.05x1.20x0.40(DIP)
