?RF-LAMBDA熱效率約束器
上傳期限：2022-11-08 16:40:20 訪問 ：991
限定器是種電流值調高儀器，限定儀器的一些技術參數設置，以有效保障儀器在限定的技術參數設置值內平常轉動，不能接受低于限定食用。限定器意義是維護智能機的平安不穩定性作業，杜絕呵護繼電囂作業引致的異常的斷電。
效率被(bei)限器是種高電(dian)(dian)(dian)機功率條件的交流(liu)電(dian)(dian)(dian)/交流(liu)電(dian)(dian)(dian)切換器(qi)(qi)(qi)，采用作操作電(dian)(dian)(dian)光(guang)電(dian)(dian)(dian)探測器(qi)(qi)(qi)式流(liu)型升壓(ya)切換器(qi)(qi)(qi)的24v24v電(dian)(dian)(dian)源電(dian)(dian)(dian)路(lu)系(xi)(xi)統原(yuan)理系(xi)(xi)統。效率受限器(qi)(qi)(qi)含有整流(liu)濾(lv)波(bo)(bo)電(dian)(dian)(dian)路(lu)系(xi)(xi)統原(yuan)理系(xi)(xi)統，整流(liu)管的傳輸(shu)與升光(guang)電(dian)(dian)(dian)探測器(qi)(qi)(qi)式感和傳輸(shu)電(dian)(dian)(dian)子(zi)元(yuan)器(qi)(qi)(qi)件大家庭中的一員-二極(ji)管電(dian)(dian)(dian)容(rong)電(dian)(dian)(dian)容(rong)串聯，升光(guang)電(dian)(dian)(dian)探測器(qi)(qi)(qi)式感與24v24v電(dian)(dian)(dian)源管后(hou)臺開發(fa)與地(di)互相電(dian)(dian)(dian)容(rong)串聯，傳輸(shu)整流(liu)濾(lv)波(bo)(bo)電(dian)(dian)(dian)路(lu)系(xi)(xi)統原(yuan)理系(xi)(xi)統，傳輸(shu)端借助電(dian)(dian)(dian)壓(ya)值(zhi)評價互聯網接連到直(zhi)流(liu)變頻器(qi)(qi)(qi)這一物件操作電(dian)(dian)(dian)子(zi)器(qi)(qi)(qi)件上(shang)。
特點
?網絡(luo)帶(dai)寬選用0.1-0.5GHz
?無源(yuan)高(gao)隔離開約束器
?放(fang)耗用低，回波耗用好(hao)
?高(gao)熱效率辦理(li)性能指標
?可按照(zhao)要(yao)定制化(hua)制作
東莞 市立維創(chuang)展(zhan)自動化是RF-LAMBDA的(de)銷售商， RF-LAMBDA的(de)貨品涵(han)蓋：無源調(diao)整引(yin)擎(qing)電(dian)源，有源調(diao)整引(yin)擎(qing)電(dian)源，光纖寬(kuan)帶電(dian)功(gong)率變(bian)大器，窄帶PA和(he)能(neng)夠(gou)變(bian)大器，物料研發線(xian)均基(ji)于韓(han)國(guo)軍工用規(gui)劃的(de)標準與(yu)研發制造技(ji)術，逐層大范圍用到(dao)于航天科技(ji)，航班，軍工用機器，定位通信設備，雷(lei)達天線(xian)等頂級公程項目(mu)。
祥情了解RF-LAMBDA請單擊：http?: //www.gyzhkj.com/public/brand/3.html
Part Number | Description | "Frequency Range " (GHz) | CW Input Power (W) | Peak Power Flat Leakage (+dBm) | Insertion Loss (dB) | Speed (ns) | VSWR (max) | Heatsink |

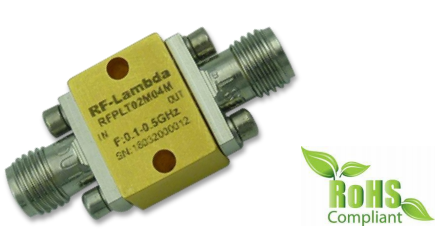

RFPLT02M04M | PIN Diode Limiter | 0.10~0.50 | 5 | 17 | 0.50 | 50 | 1.20 | N/A |
RFAPLT01M05M | Input Over Drive Protector | 0.06~0.51 | 10 | -20 | 0.80 | 100 | 1.50 | N/A |
RFPLT05M01G | PIN Diode Limiter | 0.50~1.00 | 3~100 | 17 | 0.40 | 50 | 1.20 | N/A |
RFPLT01G02G | PIN Diode Limiter | 1.00~2.00 | 3~80 | 17 | 0.50 | 50 | 1.30 | N/A |
RFPLT02G04G | PIN Diode Limiter | 2.00~4.00 | 3~50 | 17 | 0.60 | 50 | 1.40 | N/A |
RFPLT02G04GG | PIN Diode Limiter | 2.00~4.00 | 200 | 16 | 0.60 | 120 | 1.80 |
|
RFPLT06G06G | PIN Diode Limiter | 5.00~6.00 | 5W CW
250W Peak | 20 | 0.70 | 50 | 1.30 | N/A |
RFPLT05G06G | PIN Diode Limiter | 5.40~6.00 | 1W | -15 | 1.00 | 50 | 1.50 | N/A |
RFPLT01G06G | PIN Diode Limiter | 1.00~6.00 | 5W CW 100W Peak | 20 | 0.50 | 50 | 1.40 | N/A |
RFPLT00M06G | Pin Diode Limiter | 0.05~6.00 | 80 | 17 | 1.20 | 50 | 2.00 |
|
RFPLT01G06GG | PIN Diode Limiter | 0.50~6.00 | 100 | 16 | 0.70 | 120 | 1.80 | N/A |
RFPLT01G06GG-H | Hermetically Sealed Pin Diode Limiter | 1.00~6.00 | 50 | 18 | 1.00 | 50 | 1.80 | N/A |
RFPLT00M06GN | PIN Diode LImiter | 0.05~6.00 | 80 | 17 | 1.20 | 50 | 2.00 |
|
RFPLT00M06GN-H | High Power Limiter (Hermetically Sealed) | 0.05~6.00 | 80 | 17 | 1.20 | 50 | 2.00 |
|
RFPLT04G08G | PIN Diode Limiter | 4.00~8.00 | 5 | 17 | 1.00 | 50 | 1.50 | N/A |
RFAPLT02G08G | Input Over Drive Protector | 2.00~8.00 | 1 | -15 | 0.90 | 100 | 1.20 | N/A |
RFAPLT04G08G | Input Over Drive Protector | 4.00~8.00 | 1 | -15 | 1.40 | 100 | 1.20 | N/A |
RFPLT08G12G | PIN Diode Limiter | 8.00~12.00 | 6 | 17 | 1.60 | 50 | 1.60 | N/A |
RFPLT08G12GG | PIN Diode Limiter | 7.50~12.50 | 50 | 19 | 0.70 | 120 | 2.00 | N/A |
RFLMT10G10G | PIN Diode Limiter | 10.00~15.00 | 25 | 15 | 1.00 | 50 | 1.30 | N/A |
RFPLT02G18GB | PIN Diode Limiter | 1.00~18.00 | 6 | 17 | 2.00 | 50 | 2.20 | N/A |
RFPLT12G18G | PIN Diode Limiter | 12.00~18.00 | 6 | 17 | 1.80 | 50 | 1.80 | N/A |
RFPLT12G18GH | Input Over Drive Protector | 12.00~18.00 | 1 | -15 | 1.40 | 100 | 1.20 | N/A |
RFAPLT01G18G | Input Over Drive Protector | 1.00~18.00 | 33 | -17 | 3.00 | 100 | 2.00 | N/A |
RFPLT01M20GG | PIN Diode Limiter | 0.05~21.00 | 4 | 19 | 1.00 | 50 | 1.80 | N/A |
RFPLT01M20GG-H | Hermetically Sealed PIN Diode Limiter | 0.05~21.00 | 4 | 19 | 1.00 | 50 | 1.80 | N/A |
RFAPLT01G23G | Input Over Drive Protector | 1.00~23.00 | 1 | -10 | 2.50 | 100 | 1.50 | N/A |
RFPLT01G26GE-H | PIN Diode Limiter (Hermetic Seal) | 1.00~26.00 | 1 | 21 | 3.00 | 120 | 1.80 | N/A |
RFPLT01G26GE | PIN Diode Limiter | 1.00~26.00 | 1 | 18 | 3.00 | 120 | 1.80 | N/A |
RFPLT02G26GG | PIN Diode Limiter | 2.00~26.00 | 5 | 18 | 1.00 | 120 | 1.80 | N/A |
RFPLT29G39GG | PIN Diode Limiter | 29.00~39.00 | 1 | 20 | 2.00 | 120 | 2.00 | N/A |
RFAPLT26G40G | Input Over Drive Protector | 26.00~40.00 | 10 | -15 | 2.00 | 100 | 1.50 |
|
RFAPLT18G40G | Input Over Drive Protector | 18.00~40.00 | 23 | -17 | 4.00 | 100 | 2.00 | N/A |
