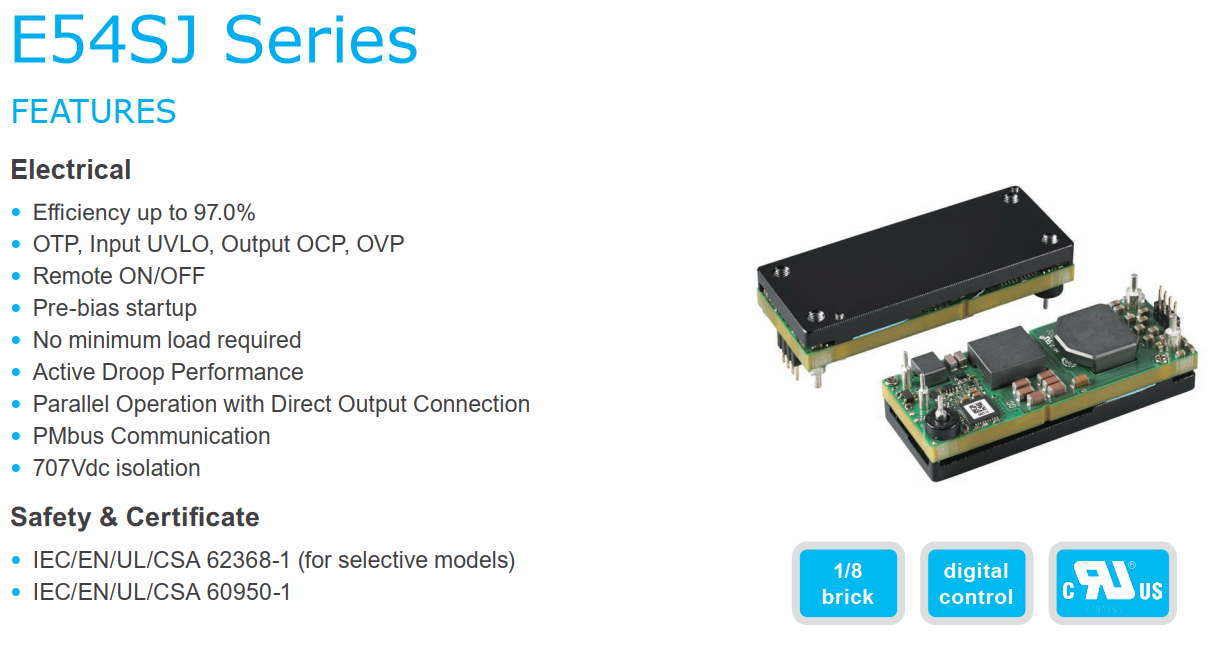

E54SJ12040隔離1/8磚DC-DC大電流電源模塊
E54SJ12040隔離1/8磚DC-DC大電流電源模塊
核心因素

輸入電壓：40-60V

模擬輸出電壓值：12V打出電流量：40.7A工作電壓: 480W工作效率：96.7%

訂貨周期：8-10周

品牌：DELTA

產品設備寶貝詳情講述


Part Number Input
Voltage		Output
Voltage		Vo trim
range		Output
Current		Output
Power 		Efficiency Isolation Voltage without heat spreader Size (LxWxH)
E54SJ3R350 40~60V 3.3V 2.64~3.63 50A 165W 96.7% 707V 58.4x22.8x14.5 mm
E54SJ05040 40~60V 5V - 40A 200W 96.0% 707V 58.4x22.8x12.2 mm
E54SJ12033 40~60V 12V - 33.9A 400W 97.0% 707V 58.4x22.8x14.5 mm
E54SJ12040 40~60V 12V - 40.7A 480W 96.7% 707V 58.4x22.8x14.5 mm
