?Q20HK-1900R定向耦合器

很重要技術指標

Q20HK-1900R定向耦合器

頻點：1.8 – 2 GHz交叉耦合：20聲貝±0.5聲貝的全局性：20聲音分貝駐波比：1.3:1加上消耗的資金：0.3dB瓦數：80瓦評詁板722-0006-07-E01進貨周期長：6-8周

品牌：Electro-Photonics

設備具體詳情簡介

1800-2000 MHz Directional Coupler

The Q20HK-1900R is a bi-directional coupler with high directivity and high power handling. Q20HK-1900R is a replacement for Soshin P/N GSC311-20M1900. It is suitable for AWS, DCS, PCS, UMTS, CDMA , IMT and more…

Specifications

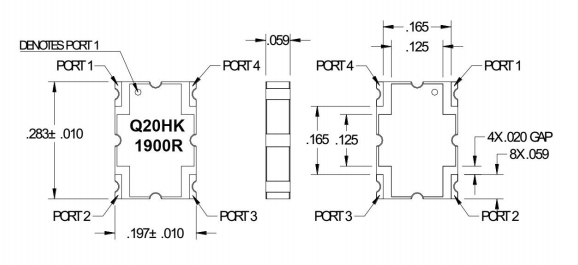

Size: 0.283 x 0.197 inches
Frequency: 1.8 – 2 GHz
Coupling: 20 dB ± 0.5 dB
Directivity: 20 dB
VSWR: 1.3:1
Insertion Loss: 0.3 dB
Power: 80 W
Evaluation board 722-0006-07-E01
